RAILGLASS
Glass Systems
Matek Grup Railglass is a new generation sliding glass system with its patented design. It can be used in a single module at a height of 3400 mm with an extra support profile. With its minimalistic and robust look, it is a popular architectural solution for homes and commercial spaces. Extra support profiles add an elegant look and durability to the glass panels. The feature of being able to gather on both sides adds extra comfort to the using experience of Railglass. The high and low options of the bottom rail also offer different solutions for indoor and outdoor use. Matek Grup Railglass is made of insulated glass and is a high-performance product in terms of the climatic balance of the living space.

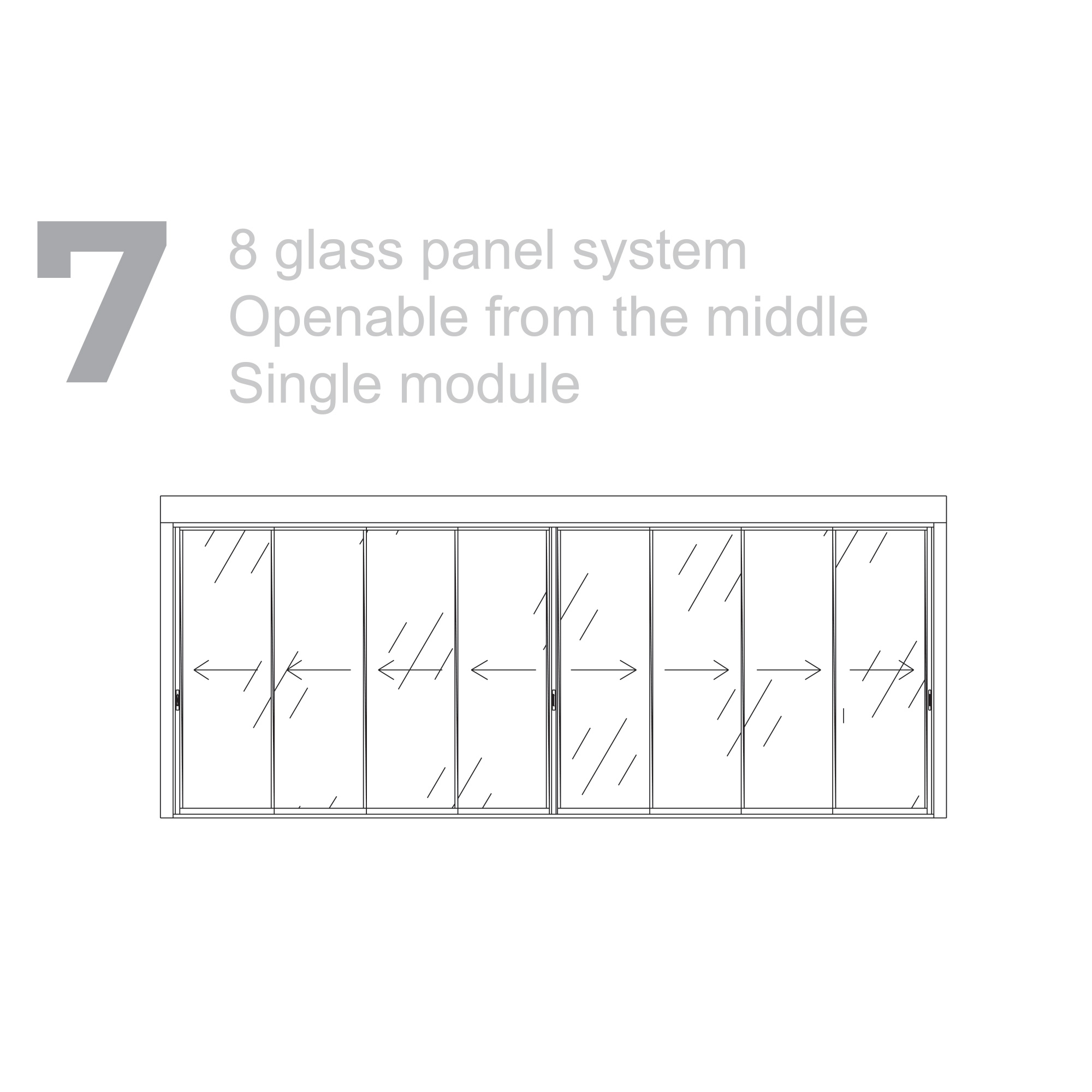

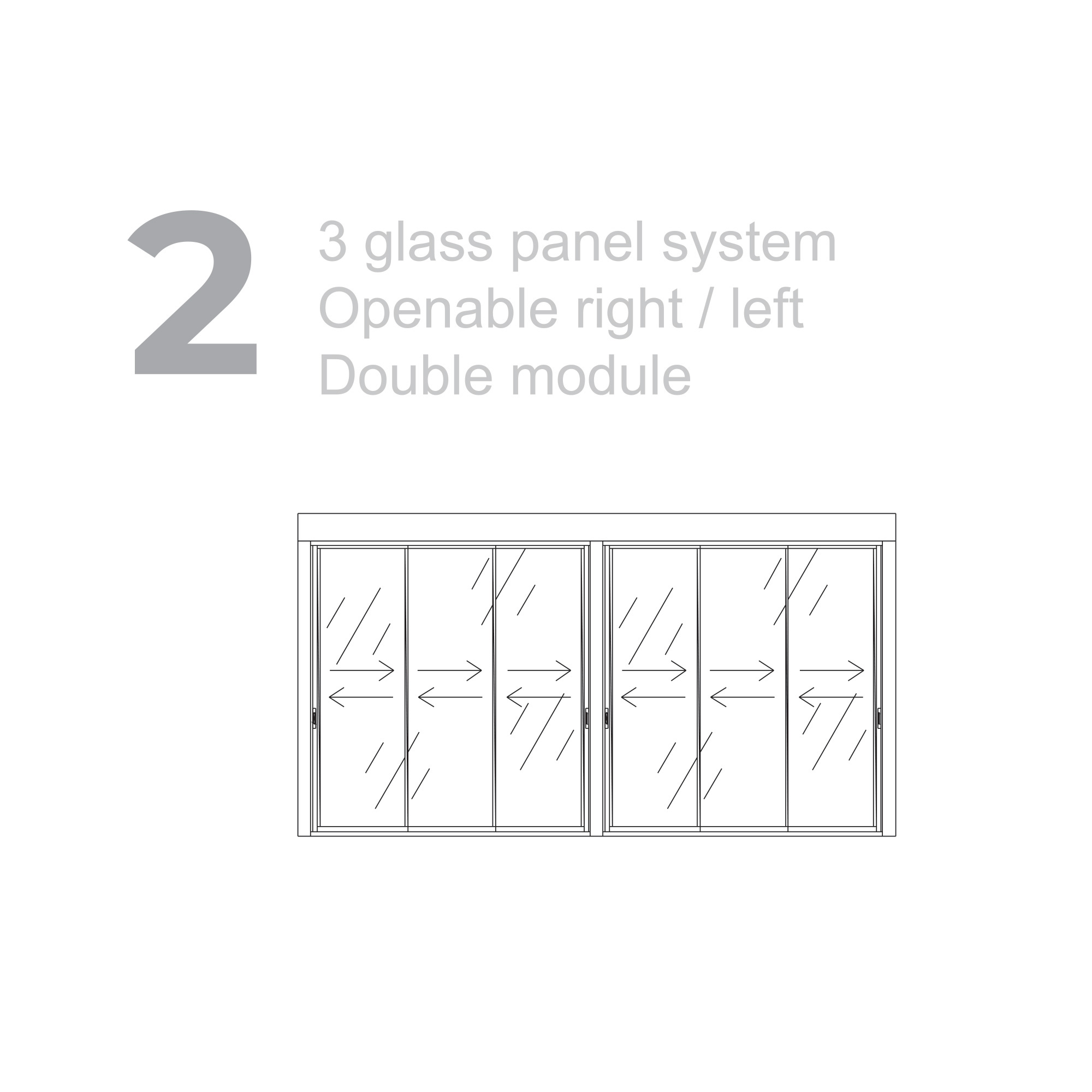

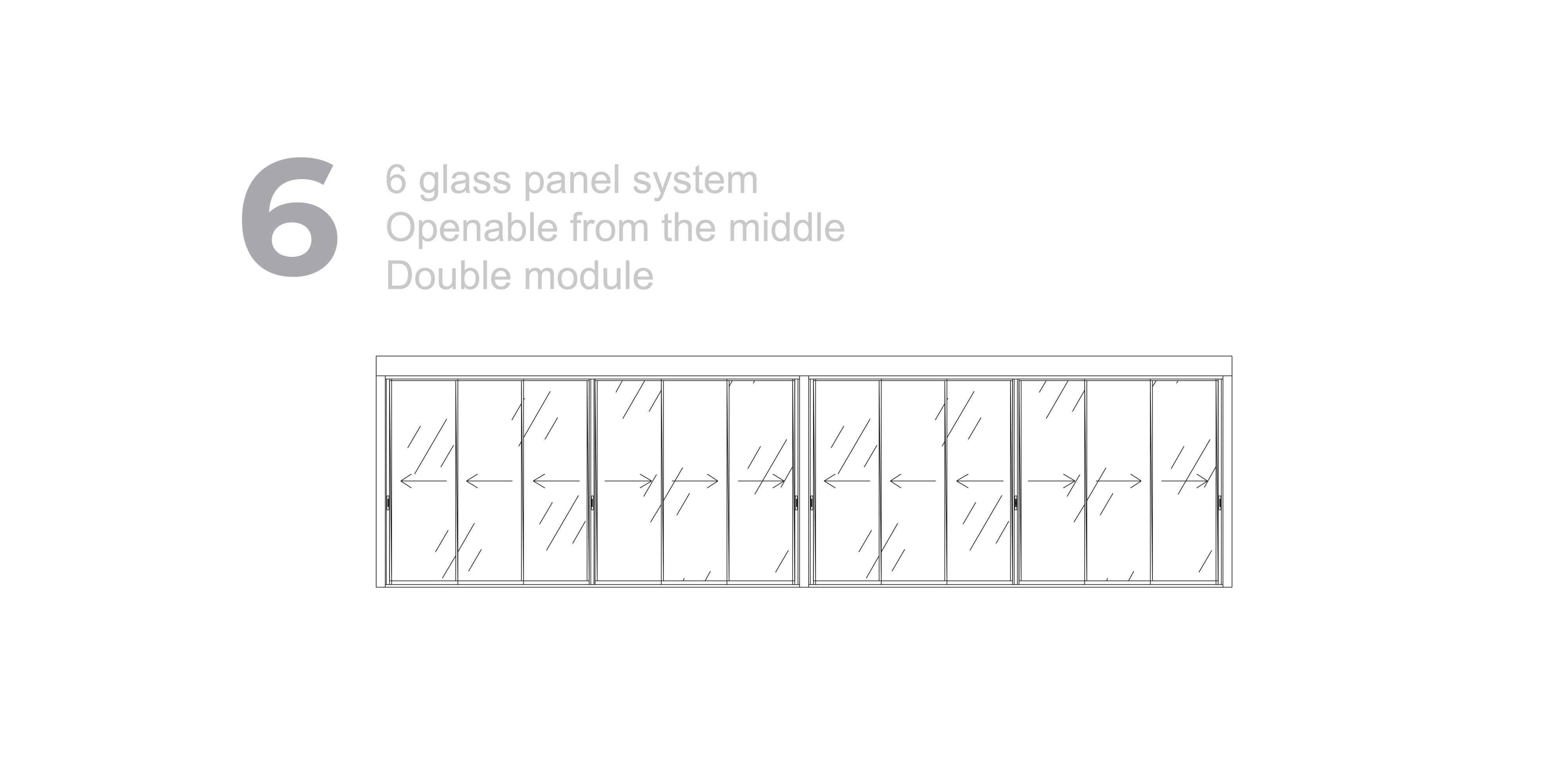

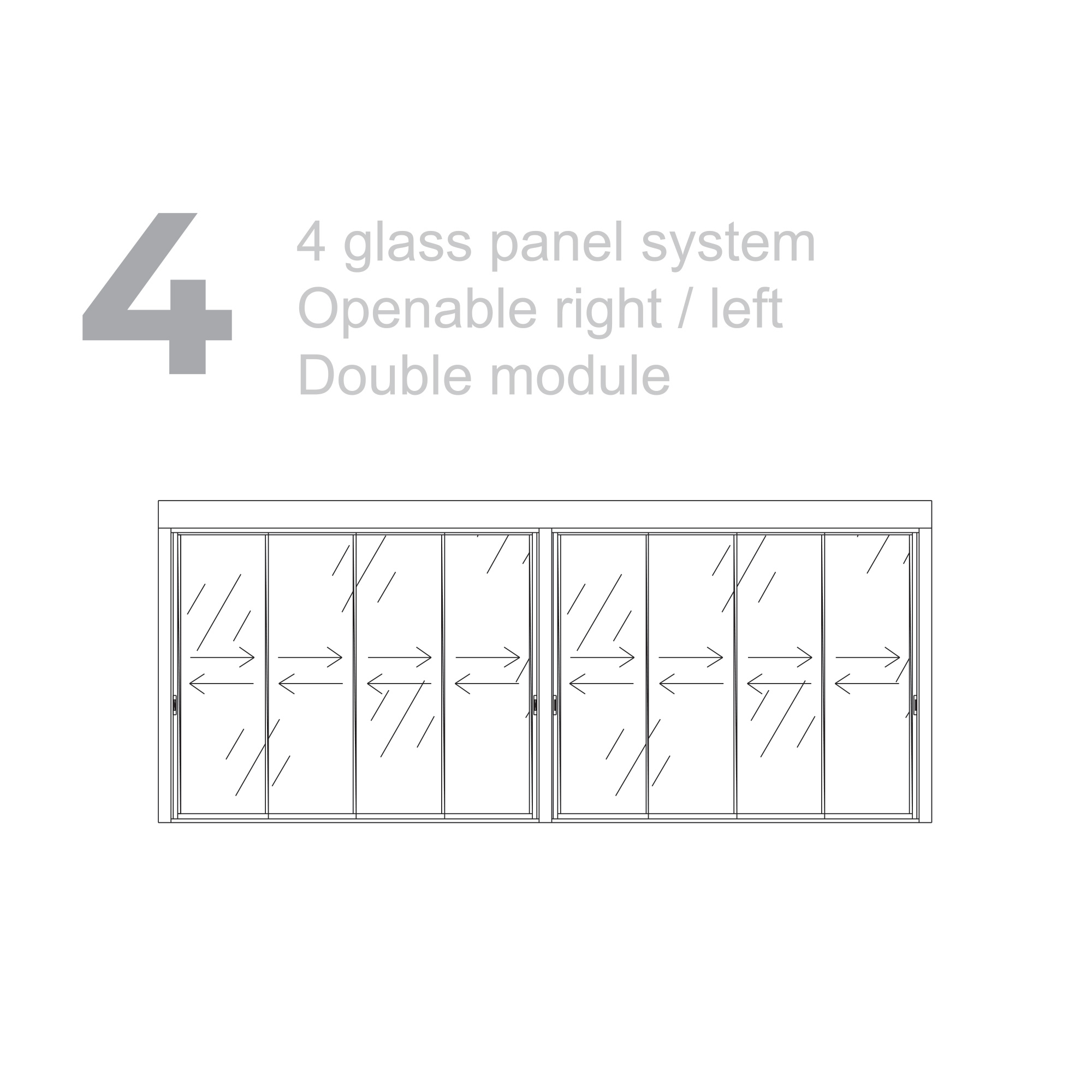

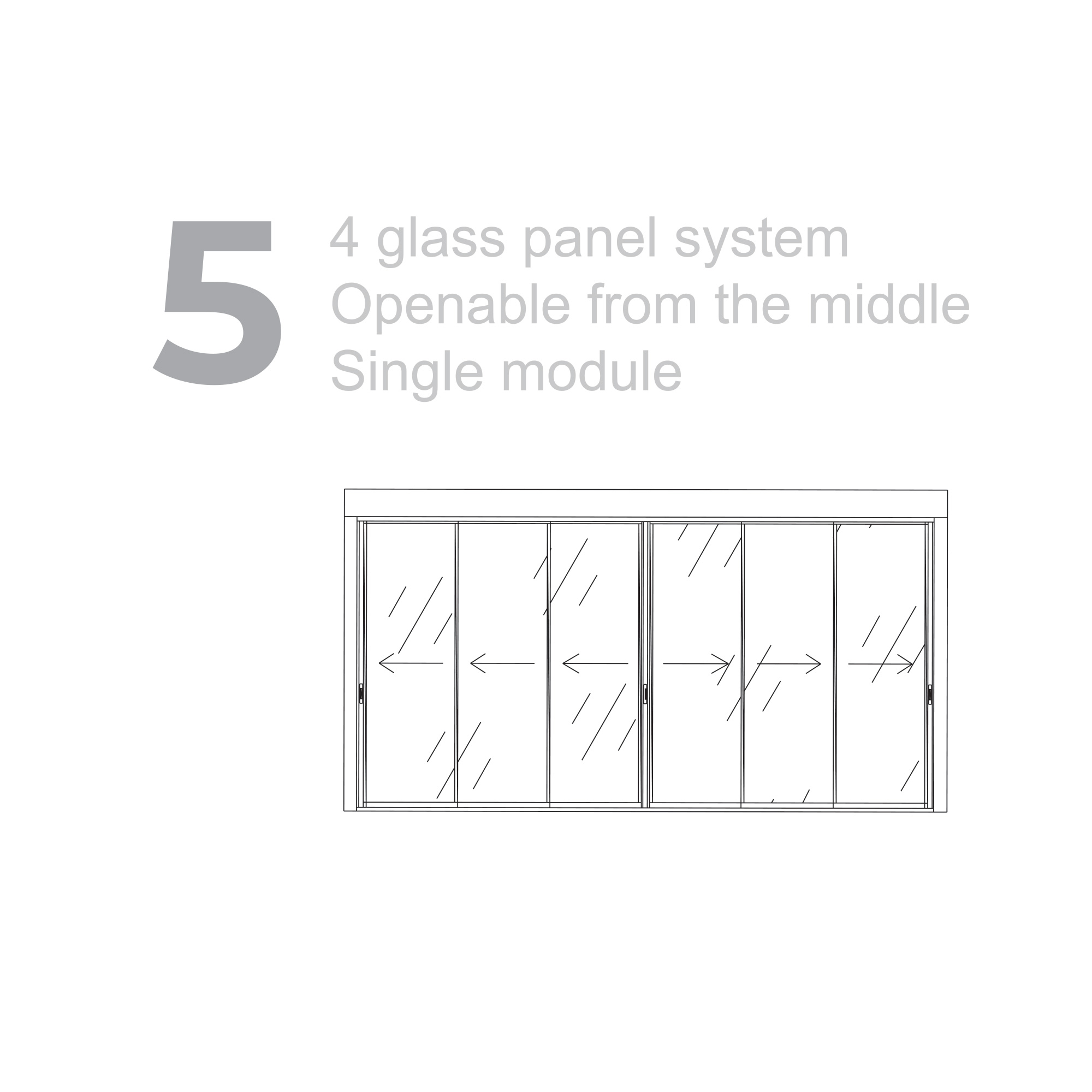

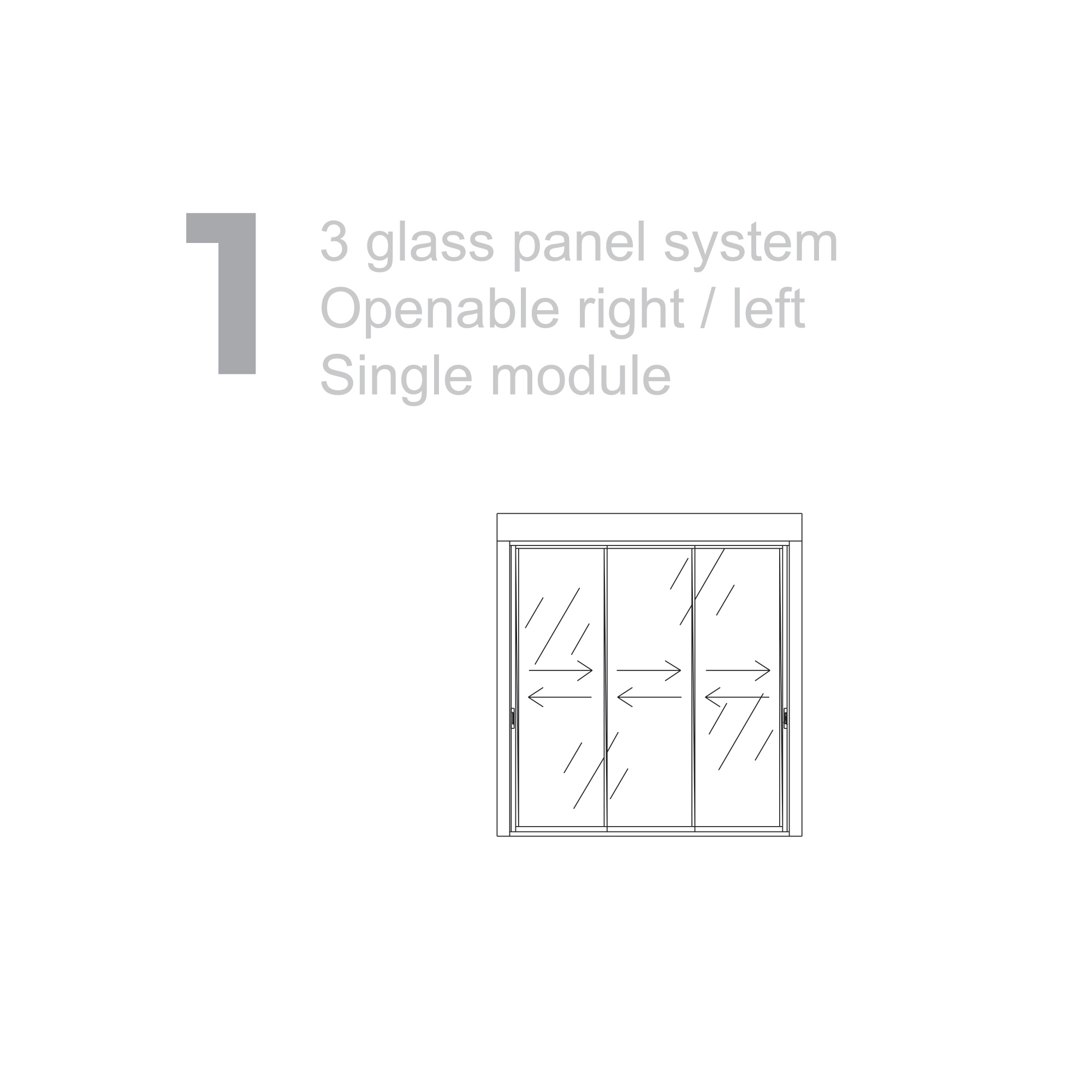

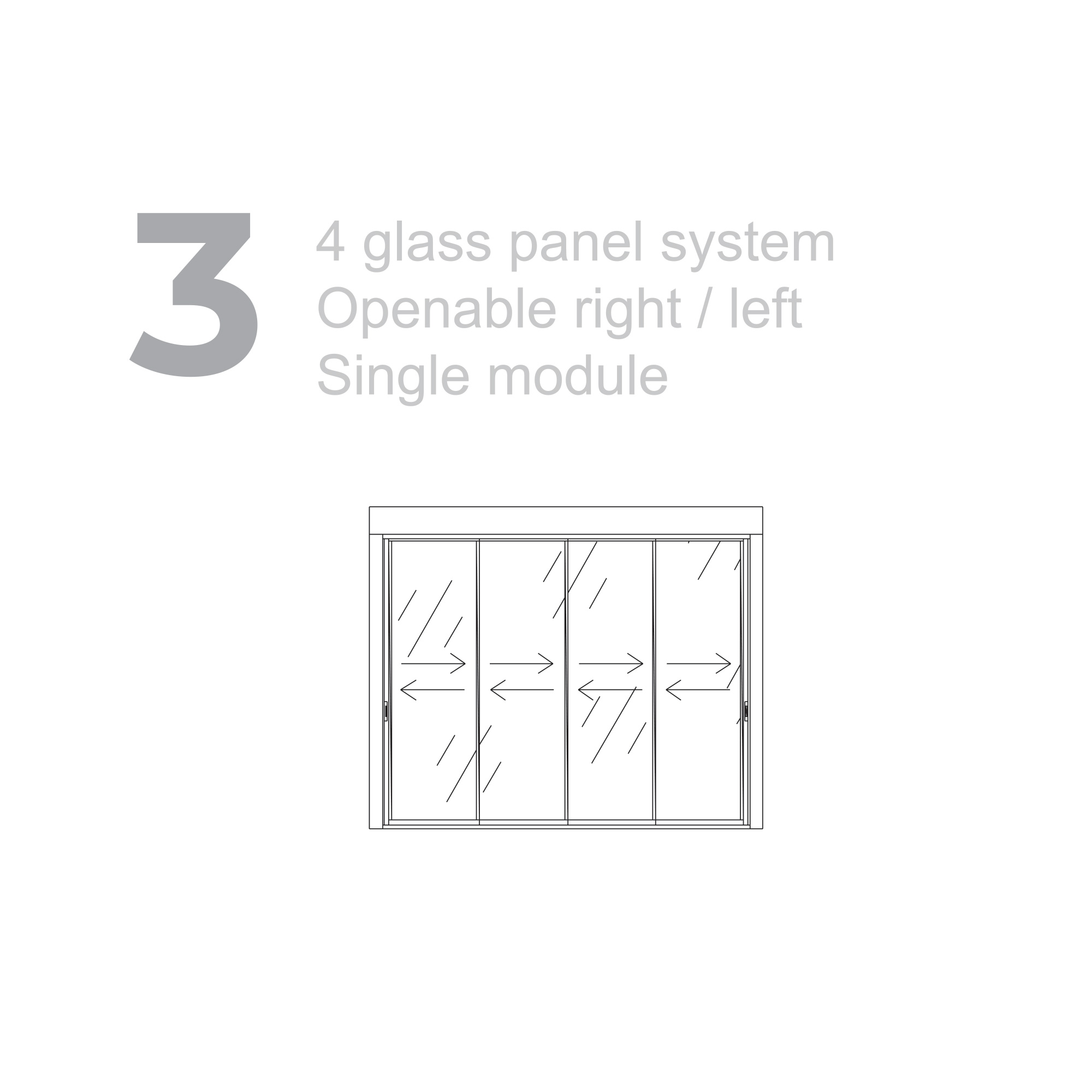

Configurations
Technical Data

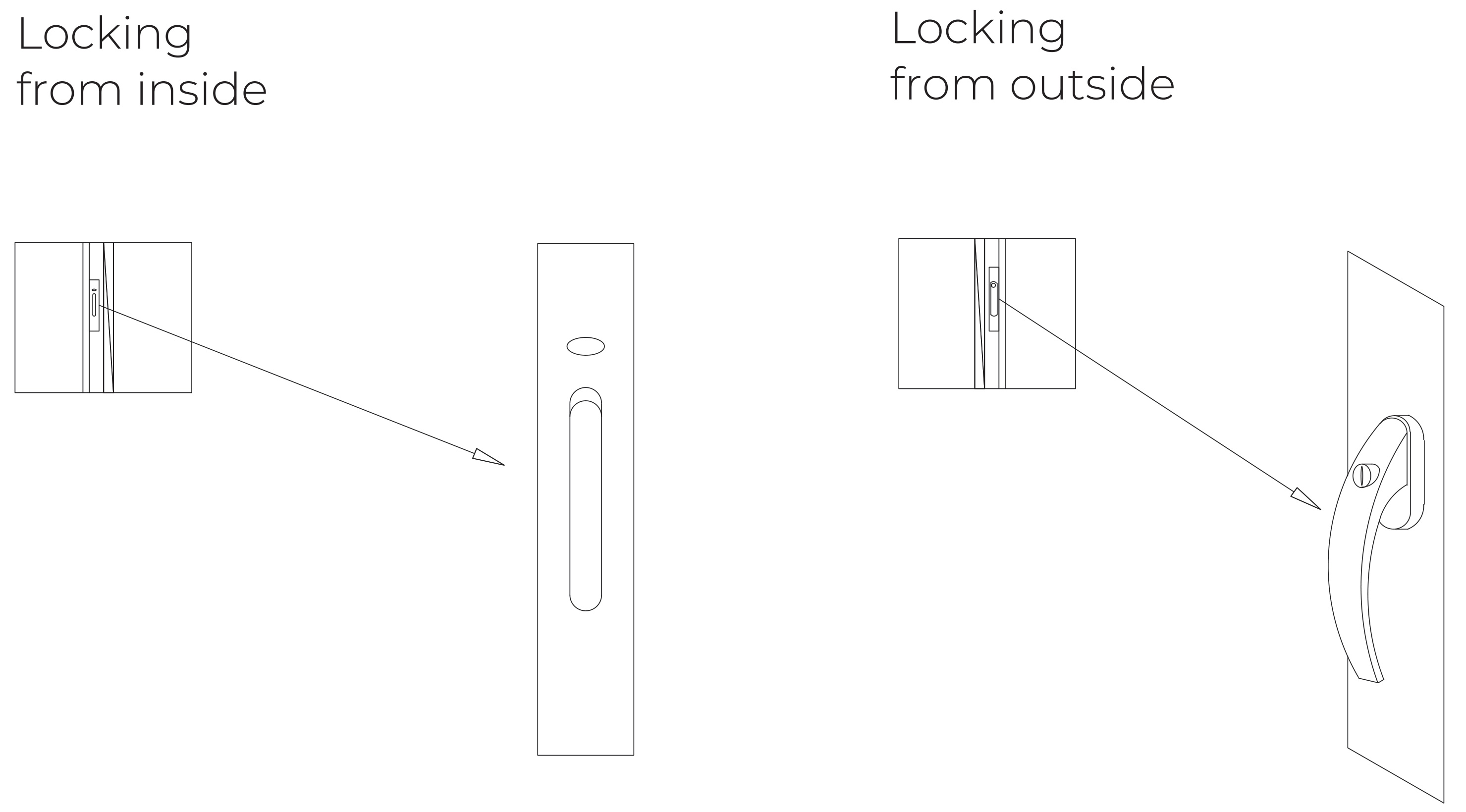

LOCKING OPTIONS
Royal Sky's laminated double-layer glass blades provide a cool living space in summer and warm in winter. Even when all blades are closed, you can see the sky and let the daylight into your living space. Royal Sky provides energy saving, wellness, comfort and keeps you in touch with nature.

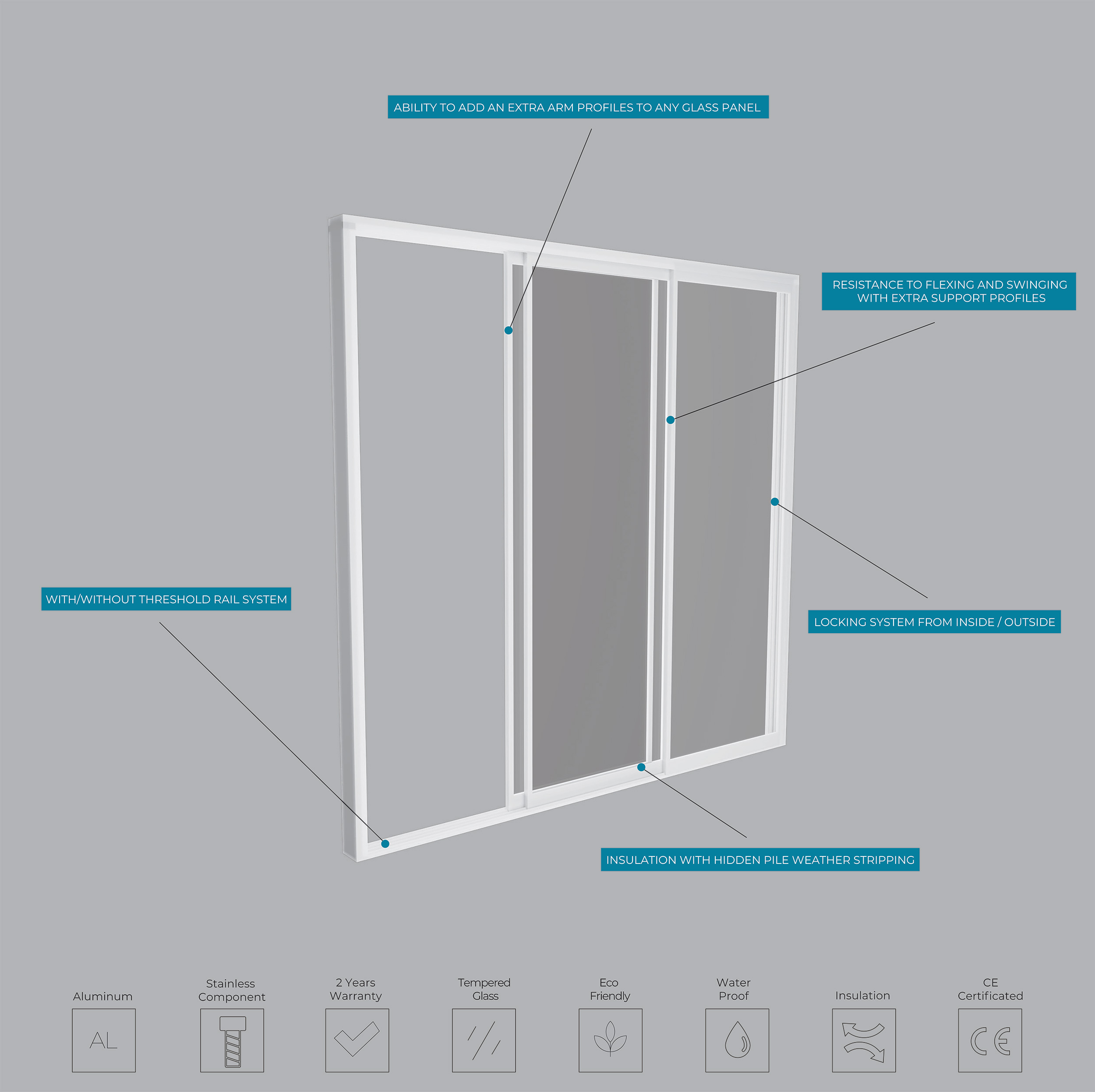

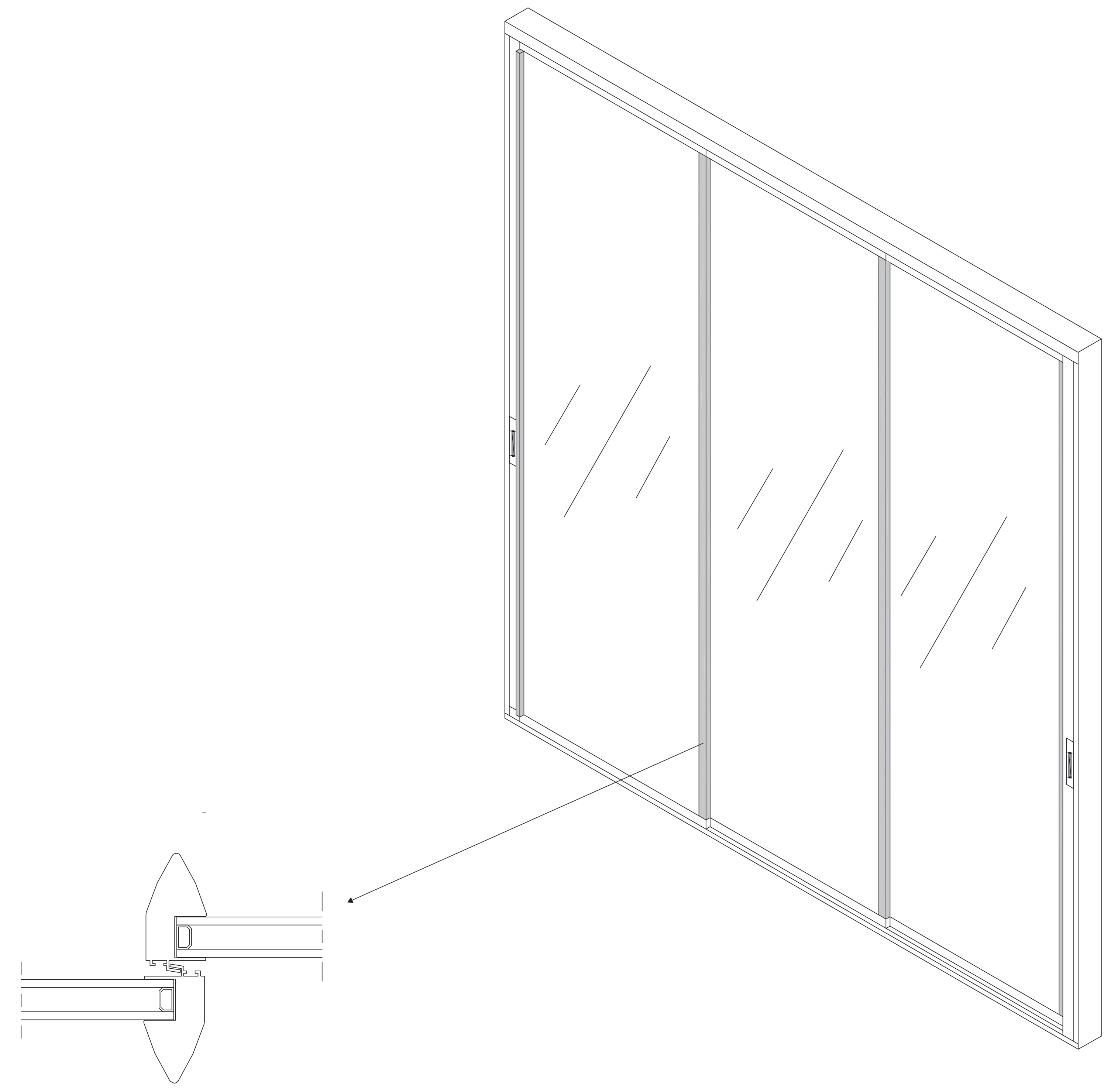

MAXIMUM HEIGHT WITH EXTRA SUPPORT PROFILE
With the extra support profile, a height of 3400 mm is possible in a single module. This feature offers not only a more elegant and sophisticated look, but also a wider view.
| Maximum width for each module | 7000 mm |
| Maximum height for each module | 3000 mm |
| Extra support profile | Optional |
| Arm profile | Optional |
| Maximum width for each glass panel | 1000 - 1300 mm |
| Glass thickness | 4 mm/9 mm AG/ 4 mm - 4 mm/12 mm AG/4 mm |
| Glass features/td> | Tempered insulating glass |
| Solar Low-E glass | Optional |
| Glass colour | Optional |
| Number of glasses for each module | 2-3-4-6-8 |
| With/without threshold crossing | Optional |
| Locking system | Optional |
| Extruded aluminum | ✓ |
| Flexibility to be applied to different areas and sizes | ✓ |
| Durability | ✓ |
| Easy cleaning and maintenance | ✓ |
| Maximum protection against weather conditions | ✓ |
| Curtain systems | Optional |
| Awning systems | Optional |
| Colour | Single / Multi |
| Powder Coated | ✓ |
| . | . |
THE SLIDING GLASS SYSTEM MATEK GRUP RAILGLASS IS THE IDEAL SOLUTION FOR PROJECTS WHERE YOU NEED TO TAKE ADVANTAGE OF THE SPACE
